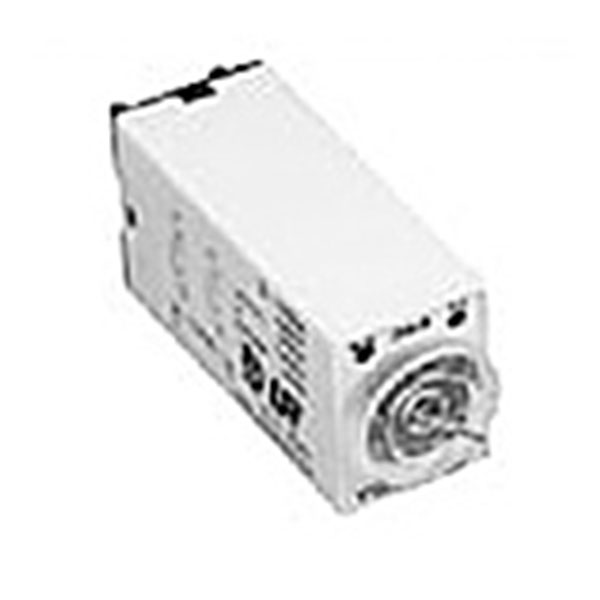

Multi Range Timer
Product Detail:
| Classification | Multi Range Timer | Multi Range Timer | Multi Range Timer | |||||||

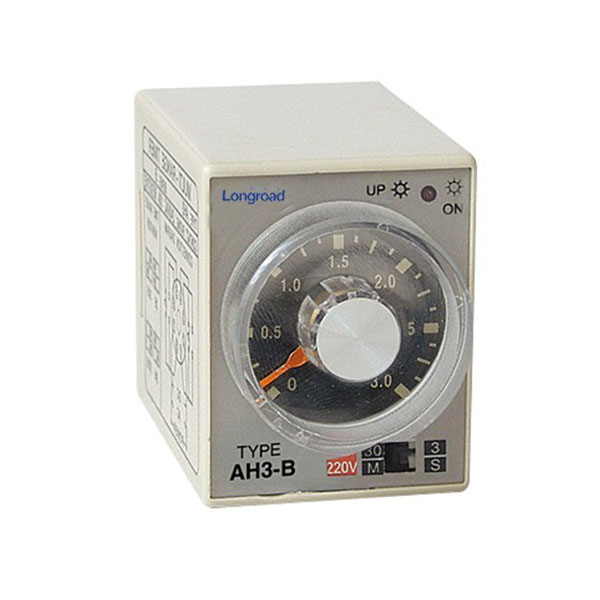

| Specification Model | AH3-3 | AH3-B | AH3-NB | |||||||
| Dimension | 50H × 40W × 57.5D | 50H × 40W × 57.5D | 50H × 40W × 57.5D | |||||||
| Mounting & Socket | Surface(-N) | PF083A (E) | PF083A (E) | PF083A (E) | ||||||
| Flush(-Y) | US-08 P3G-08 | US-08 P3G-08 | US-08 P3G-08 | |||||||
| Full Timing Range |
SEC:1,3,6,10,12,30,60 MIN:3,6,10,12,30,60 HR:3,6,10,12,30 |
A:1S,10S,1M,10M B:3S,30S,3M,30M C:6S,60S,6M,60M D:1M,10M,1H,10H E:3M,30M,3H,30H |
A:1S,10S,1M,10M B:3S,30S,3M,30M C:6S,60S,6M,60M D:1M,10M,1H,10H E:3M,30M,3H,30H |
|||||||
| Rated Voltage (V) |
AC: 24,110,220,240,380,50/60Hz DC: 12,24 |
AC: 24,110,220,240,380,50/60Hz DC: 12,24 |
AC: 24,110,220,240,380,50/60Hz DC: 12,24 |
|||||||
| Indicator Operating | ON-UP operating | ON-UP operating | Time operating flicker | |||||||
| O/P Contact | Model | AH3-1 | AH3-2 | AH3-3 | AH3-1 | AH3-2 | AH3-3□ | Model A/B | ||
| Time Limit 1C | 5A | 5A | □ | □ | 5A | 5A | ||||
| Time Limit 2C | 5A | 5A | 5A | |||||||
| Instantaneous 1C | 5A | 5A | 5A | 5A | ||||||
| Life | Mechanical | 5×106 Times | 5×106 Times | 5×106 Times | ||||||
| Electrical | 105 Times | 105 Times | 105 Times | |||||||
| Accuracy | Repeat Error | ±1% max | ±1% max | ±1% max | ||||||
| Setting Error | ±10% max | ±10% max | ±10% max | |||||||
| Voltage Error | ±1% max | ±1% max | ±1% max | |||||||
| Temp Error | ±2% max | ±2% max | ±2% max | |||||||
| Reset Time | 0.1 sec max | 0.1 sec max | 0.1 sec max | |||||||
| Consumed Power | 3VAC | 3VAC | 3VAC | |||||||
| Ambient temperature | -10oC~+55oC | -10oC~+55oC | -10oC~+55oC | |||||||
| Ambient Huminity | 48~85% RH | 48~85% RH | 48~85% RH | |||||||
| Weight | 160g | 160g | 160g | |||||||
| Classification | Timer | Multi Range Timer | Multi Range Timer | ||||||
| Specification Model | ST2P | ST3PA | H3BA-8/H3BA-11 | ||||||
| Dimension | 50H × 40W × 57.5D | 55H × 40.5W × 57.5D | 48H × 48W × 93.5D | ||||||
| Mounting & Socket | Surface(-N) | PF083A(E) | PF-083A(E) | PF113A(E) | PF083A PS-08 | ||||
| Flush(-Y) | US-08 P3G-08 | US-08 P3G-08 | US-11 | US-08 P3G-08 | |||||
| Full Timing Range | SEC: 1,3,6,10,12, 30,60 MIN: 3,6,10,12,30, 60 HR: 3,6,10,12,30 | A: 0.05-0.5s/5s/30s/3min B: 0.1-10s/60s/6mim C: 0.5-5s/50s/5min/30min D: 1-10s/100s/100min/60min E: 5-60s/10s/60min/6h F: 0.25-2min/20min/2h/12h G: 0.5-4min/40min/4h/24h | 0.1SEC~100HRS | ||||||
| Rated Voltage (V) |
AC: 12,24,110,220(50/ 60Hz) DC: 12~24 |
AC: 24,48,110,220 (50/60Hz) DC: 24,48 |
24 to 240 DC/AC AC: 24,48,110,220 DC: 12,24,48 |
||||||
| Indicator Operating | ON-UP Operating | ON-UP Operating | Time Operating Flicker | ||||||
| O/P Contact | Model | ST2P-E | ST3PA | ST3PC | H3BA | H3BA-8 | H3BA-8H | ||
| Time Limit 1C | 5A | 5A | 5A | ||||||
| Time Limit 2C | 5A | 5A | 5A | 5A | |||||
| Instantaneous 1C | 5A | 5A | 5A | ||||||
| Life | Mechanical | 5 × 107 Times | 5 × 107 Times | 107 Times | |||||
| Electrical | 105 Times | 105 Times | 105 Times | ||||||
| Accuracy | Repeat Error | ±2% max | ±2% max | ±2% max | |||||
| Setting Error | ±5% max | ±5% max | ±5% max | ||||||
| Voltage Error | ±5% max | ±5% max | ±5% max | ||||||
| Temp Error | ±2% max | ±2% max | ±2% max | ||||||
| Reset Time | 0.5 sec max | 0.5 sec max | 0.5 sec max | ||||||
| Consumed Power | 3VA | 3VA | 100~240VAC:10VA 12VDC,24~240VDC:1.5W | ||||||
| Ambient temperature | -10oC~+55oC | -10oC~+55oC | -10oC~+55oC | ||||||
| Ambient Huminity | 35~85% RH | 35~85% RH | 35~85% RH | ||||||
| Weight | 100g | 100g | 100g | ||||||
| Classification | Multi Range Timer | Multi Range Timer | Multi Range Timer | ||
| Specification Model | H3CR-A8 | H3CA-A | H3CA-8 | ||
| Dimension | 48H × 48W × 81.6D | 48H × 48W × 81.6D | 48H × 48W × 81.6D | ||
| Mounting & Socket | Surface(-N) | PS-08 PF083A | PF113A(E) | PS-08 PF083A | |
| Flush(-Y) | US-08 P3G-08 | US-11 | US-08 P3G-08 | ||
| Full Timing Range | 0.5SEC~300HRS | 0.1SEC~9990HRS | 0.1SEC~9990HRS | ||
| Rated Voltage (V) |
AC: 24,110~240(50/60Hz) DC: 12,24~240(50/60Hz) |
AC: 24~240(50/60Hz) DC: 24~240(50/60Hz) |
AC: 24,110, 220 (50/60Hz) DC: 24,48(50/60Hz) |
||
| Indicator Operating | Time Operating Flicker | LCD | LCD | ||
| O/P Contact | Model | H3CR-A8 | H3CA-A | H3CA-8 | |
| Time Limit 1C | 5A | ||||
| Time Limit 2C | 5A(AC250) | 5A | |||
| Instantaneous 1C | |||||
| Life | Mechanical | 107 Times | 107 Times | 107 Times | |
| Electrical | 105 Times | 105 Times | 105 Times | ||
| Accuracy | Repeat Error | ±2% max | ±2% max | ±2% max | |
| Setting Error | ±5% max | ±5% max | ±5% max | ||
| Voltage Error | ±5% max | ±5% max | ±5% max | ||
| Temp Error | ±2% max | ±2% max | ±2% max | ||
| Reset Time | 0.5 sec max | 0.5 sec max | 0.5 sec max | ||
| Consumed Power | 100~240VAC:10VA 12VDC,24~240VDC:1.5W | 100~240VAC:10VA 12VDC,24~240VDC:1.5W | 100~240VAC:10VA 12VDC,24~240VDC:1.5W | ||
| Ambient temperature | -10oC~+55oC | -10oC~+55oC | -10oC~+55oC | ||
| Ambient Huminity | 35~85% RH | 35~85% RH | 35~85% RH | ||
| Weight | 100g | 100g | 100g | ||
