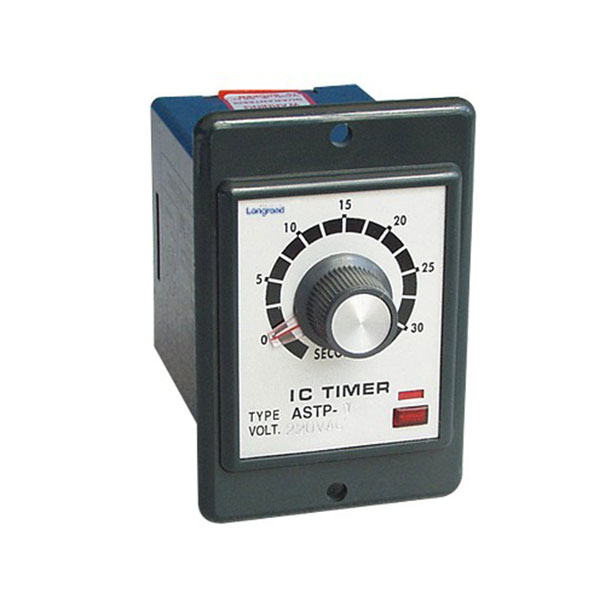

Timer
Product Detail:
| Classification | Timer | Timer | Timer | Timer | ||||||
| Specification Model | ASTP-N | ASTP-Y | AH2-N | AH2-Y | ||||||
| Dimension | 61H × 49W × 70D | 88H × 58W × 68D | 61H × 49W × 70D | 88H × 58W × 68D | ||||||
| Mounting & Socket | Surface(-N) | PF083A PS-08 | PF083A | PF083A PS-08 | PF083A | |||||
| Flush(-Y) | P2CF-08 | US-08 P3G-08 | P2CF-08 | US-08 P3G-08 | ||||||
| Full Timing Range | SEC: 1,3,6,10,12,30,60 MIN: 3,6,10,12,30,60 HR: 3,6,10,12,24 |
SEC: 1,3,6,12,30,60 MIN: 3,6,12,30,60 HR: 3,6,12,24 |
||||||||
| Rated Voltage (V) | AC: 12,24,110,220,240 50/60Hz DC: 12,24 | AC: 12,24,110,220,240 50/60Hz DC: 12,24 | ||||||||
| Indicator Operating | Time Operating | ON-UP Two Indicator Lamp | ||||||||
| O/P Contact | Model | ASTP-N1/ ASTP-Y1 | ASTP-N2/ ASTP-Y2 | ASTP-N/ ASTP-Y | AH2-N1/ AH2-Y1 | AH2-N2/ AH2-Y2 | AH2-N/ AH2-Y | |||
| Time Limit 1C | 5A | 5A | 5A | 5A | ||||||
| Time Limit 2C | 5A | 5A | ||||||||
| Instantaneous 1C | 5A | 5A | ||||||||
| Life | Mechanical | 5 × 106 Times | 5 × 106 Times | |||||||
| Electrical | 105 Times | 105 Times | ||||||||
| Accuracy | Repeat Error | ±1% max | ±1% max | |||||||
| Setting Error | ±10% max | ±10% max | ||||||||
| Voltage Error | ±1% max | ±1% max | ||||||||
| Temp Error | ±2% max | ±2% max | ||||||||
| Reset Time | 0.1 sec max | 0.1 sec max | ||||||||
| Consumed Power | 3VA | 3VA | ||||||||
| Ambient temperature | -10oC~+55oC | -10oC~+55oC | ||||||||
| Ambient Huminity | 48~85% RH | 48~85% RH | ||||||||
| Weight | 220g | 220g | ||||||||
