M Series Plastic Cable Glands
Product Detail:

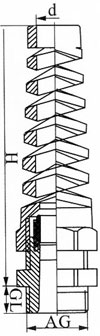

M series
| AG |
  (mm)
|
GL(mm) | H(mm) |
  (mm)
|
|
| M12x1.5 | 3-6.5 | 8 | 22 | 16 |

|
| M12x1.5 | 2-5 | 8 | 22 | 16 | |
| M14x1.5 | 4-8 | 8 | 26 | 19 | |
| M14x1.5 | 2-6 | 8 | 26 | 19 | |
| M16x1.5 | 4-8 | 8 | 26 | 19 | |
| M16x1.5 | 2-6 | 8 | 26 | 19 | |
| M18x1.5 | 5-10 | 8 | 27 | 22 | |
| M18x1.5 | 3-7 | 8 | 27 | 22 | |
| M20x1.5 | 6-12 | 9 | 28 | 24 | |
| M20x1.5 | 5-9 | 9 | 28 | 24 | |
| M22x1.5 | 10-14 | 10 | 30 | 27 | |
| M22x1.5 | 7-12 | 10 | 30 | 27 | |
| M24x1.5 | 12-15 | 10 | 30 | 27 | |
| M24x1.5 | 10-12 | 10 | 30 | 27 | |
| M25x1.5 | 13-18 | 10 | 35 | 33 | |
| M25x1.5 | 9-16 | 10 | 35 | 33 | |
| M27x1.5 | 13-18 | 10 | 35 | 33 | |
| M27x1.5 | 9-16 | 10 | 35 | 33 | |
| M30x1.5 | 16-21 | 11 | 34 | 35/36 | |
| M30x1.5 | 13-18 | 11 | 34 | 35/36 | |
| M32x1.5 | 16-21 | 11 | 34 | 36/37 | |
| M32x1.5 | 13-18 | 11 | 34 | 36/37 | |
| M36x1.5 | 18-25 | 12 | 40 | 41 | |
| M36x1.5 | 13-20 | 12 | 40 | 41 | |
| M40x1.5 | 22-32 | 14 | 48 | 52/53 | |
| M40x1.5 | 20-26 | 14 | 48 | 52/53 | |
| M50x1.5 | 32-38 | 14 | 49 | 60/61 | |
| M50x1.5 | 25-31 | 14 | 49 | 60/61 | |
| M63x1.5 | 37-44 | 14 | 50 | 67 | |
| M63x1.5 | 29-35 | 14 | 50 | 67 |
M-L series
| AG |
  (mm)
|
GL (mm) | H (mm) |
  (mm)
|
|
| M12x1.5 | 3-6.5 | 15 | 22 | 16 |

|
| M12x1.5 | 2-5 | 15 | 22 | 16 | |
| M16x1.5 | 4-8 | 15 | 26 | 19 | |
| M16x1.5 | 2-6 | 15 | 26 | 19 | |
| M18x1.5 | 5-10 | 15 | 27 | 22 | |
| M18x1.5 | 3-7 | 15 | 27 | 22 | |
| M20x1.5 | 6-12 | 15 | 28 | 24 | |
| M20x1.5 | 5-9 | 15 | 28 | 24 | |
| M20x1.5 | 10-14 | 15 | 30 | 27 | |
| M20x1.5 | 7-12 | 15 | 30 | 27 | |
| M22x1.5 | 10-14 | 15 | 30 | 27 | |
| M22x1.5 | 7-12 | 15 | 30 | 27 | |
| M25x1.5 | 13-18 | 15 | 36 | 33 | |
| M25x1.5 | 9-16 | 15 | 36 | 33 | |
| M32x1.5 | 18-25 | 15 | 40 | 41 | |
| M32x1.5 | 13-20 | 15 | 40 | 41 | |
| M40x1.5 | 22-32 | 18 | 48 | 52/53 | |
| M40x1.5 | 20-26 | 18 | 48 | 52/53 | |
| M50x1.5 | 32-38 | 18 | 49 | 60/61 | |
| M50x1.5 | 25-31 | 18 | 49 | 60/61 | |
| M63x1.5 | 37-44 | 18 | 50 | 65/67 | |
| M63x1.5 | 29-35 | 18 | 50 | 65/67 |
