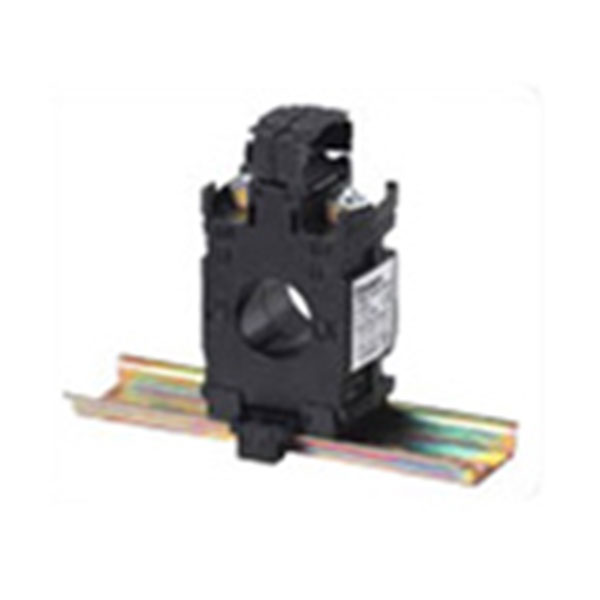

LZZBJ9-10 type current transformer
Product Detail:
| Type | Rated transformation ratio(A) | Accuracy Classes combination | Accuracy class and rated output COSφ=0.8 | 1s thermal current (kA) | Rated dynamic current(kA) | |||
| 0.2S | 0.2 | 0.5 | 10P15 | |||||
| LZZBJ9-10A1G LZZBJ9-10B LZZBJ9-10C | 5/5 | 0.2S/0.5 | 10 | 10 | 10 | 15 | 0.8 | 1.9 |
| 10/5 | 0.2S/0.25 | 1.5 | 3.8 | |||||
| 15/5 | 0.2S/10P15 | 2.3 | 5.8 | |||||
| 20/5 | 0.2/10P15 | 3 | 7.5 | |||||
| 30/5 | 0.5/10P15 | 4.5 | 11.5 | |||||
| 40/5 | 0.2/0.5/10P15 | 6 | 15 | |||||
| 50/5 | 0.2S/0.5/10P15 | 7.5 | 18.8 | |||||
| 75/5 | 0.2S/10P20 | 11.5 | 29 | |||||
| 100/5 | 0.2/10P20 | 15 | 37.5 | |||||
| 100~200/5 | 0.5/10P20 | 22.5 | 56.5 | |||||
| 300~600/5 | 0.2S/10P30 | 45 | 112.5 | |||||
| 800~2500/5 | 0.5/10P30 | 63 | 157.5 | |||||
Note: Any special requirements can be negotiated with us, thermal and heat both stable，we can customized your requirement.

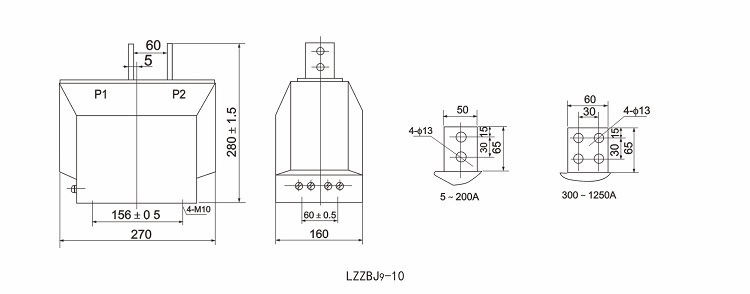

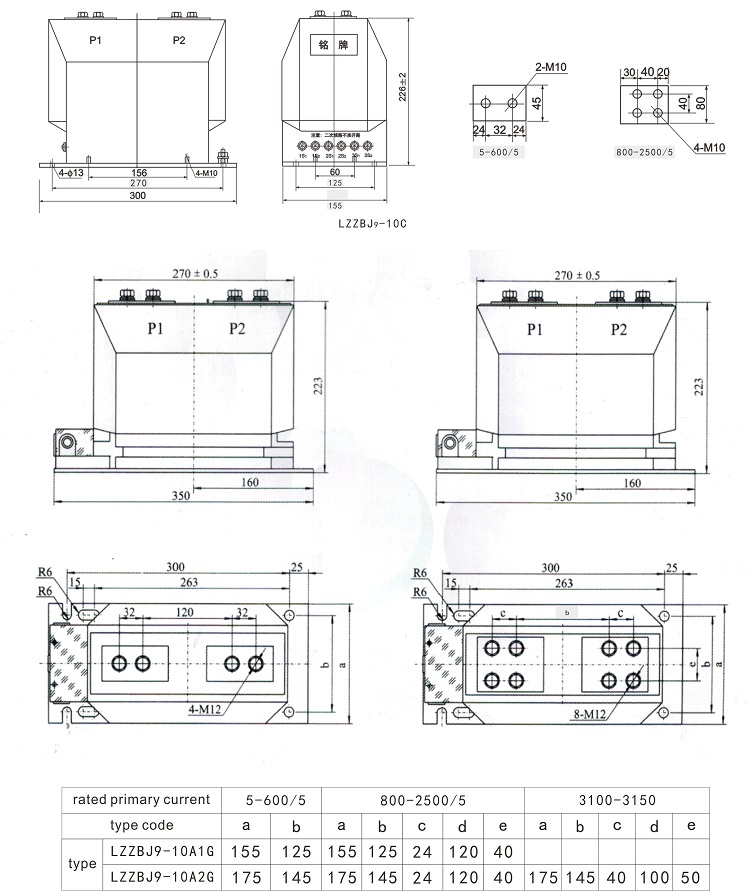

Overall dimension drawing
