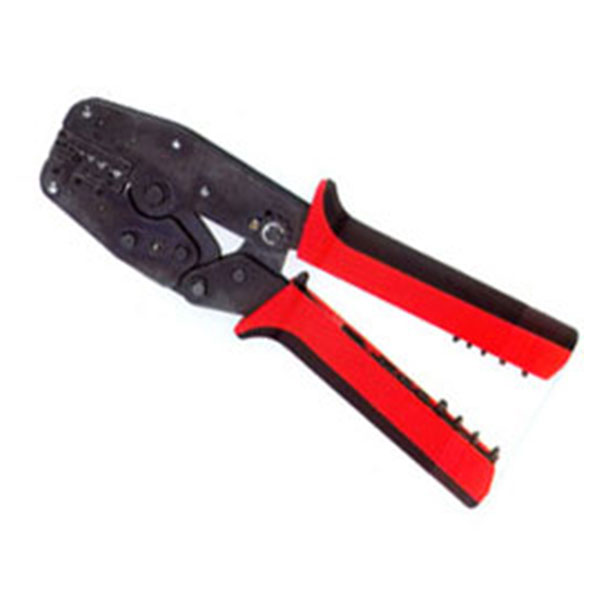

Mimi european style crimping pliers for terminals
Product Detail:
Comparison:
Energy saving crimping pliers LAS-005,is applicable for non-welding pre-insulated terminals.It meets standard electric connection and accurate crimping die without screw fixing.
Only pushing ahead you could replace crrimping die The operation is esy and convenient.The handles for LAS-005 are complied with the principle of human being and enginering.
Moreover,there are two extra crimp dies existing between the handles to be taken easily and directly
LAS-005W LAS-005N
Technical parameter:
| Model | Range of application | Capacity mm2 | AWG | links length weight | |
| Length mm | weight kg | ||||
| B | Insulated cable links+butt connectors | 0.5-6.0 | 20-10 | 230 | 0.68 |
| W | Wire-end ferrules | 0.5-6.0 | 20-10 | 230 | 0.68 |
| N | Non-insulated cable links | 0.3-8.0 | 20-7 | 230 | 0.68 |
  |   |   |
| KA-8162 For non-insulated cable links | KA-8163 Crimping cap (For insulated closed terminals) | KA-8164 For non-insulated plugs connectors |
  |   | |
| KA-8165 For wire-end ferrules | KA-8161 For insulated cable links+butt connectors |
Technical parameter:
| Model | Range of application | Capacity mm2 | AWG | links length weight | |
| Length mm | weight kg | ||||
| KA-8161 | Insulated cable links+butt connectors | 0.5-6.0 | 20-10 | 220 | 0.54 |
| KA-8162 | Non-insulated cable links | 1.0-10.0 | 17-7 | 220 | 0.54 |
| KA-8163 | Crimping cap (For insulated closed terminals) | 1.0-6.0 | 17-10 | 220 | 0.54 |
| KA-8164 | Non-insulated plugs connectors | 1.0-6.3 | 20-10 | 220 | 0.54 |
| KA-8165 | Wire-end ferrules | 0.5-6.0 | 20-10 | 220 | 0.54 |
