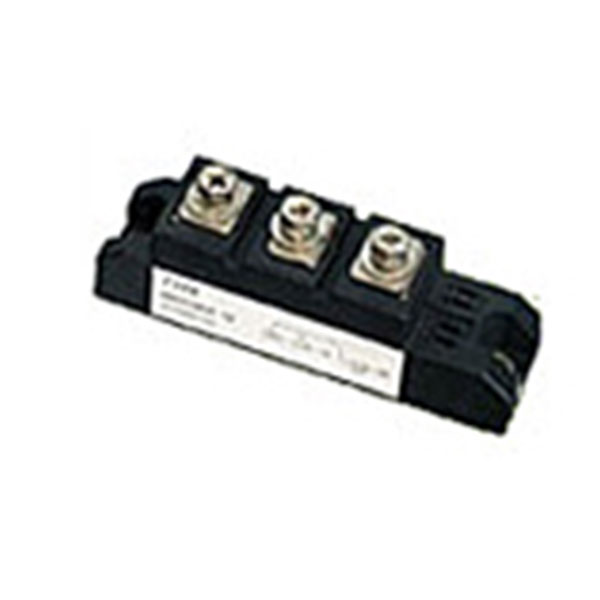

Product Detail:

Technical parameter:

Type	VRRM	I F(AV)	I FSM	I 2t	I RRM	I F(RMS)	V FM/ IFM	VFO	r F	Rjc	Tjm	V iso	Outlines
	V	TC=100 oC	KA	A2 sX104	mA	A	V/A	V	mΩ	oC /W	oC	V
	V	A	KA	A2 sX104	mA	A	V/A	V	mΩ	oC /W	oC	V
MDx26	600-1800	26	0.65	0.21	8	41	1.65/80	0.80	9.80	1.300	150	2500
MDx40	600-1800	40	1.00	.051	8	63	1.55/120	0.80	5.57	0.900	150	2500
MDx55	600-1800	55	1.30	0.86	8	86	1.45/170	0.80	3.47	0.700	150	2500
MDx55	1900-3000	55	1.30	0.86	10	86	1.55/170	0.85	3.76	0.680	150	3600
MDx70	600-1800	70	1.80	1.65	8	110	1.40/210	0.80	2.50	0.570	150	2500
MDx70	1900-3000	70	1.80	1.65	10	110	1.50/210	0.85	2.73	0.550	150	3600
MDx90	600-1800	90	2.30	2.69	8	141	1.33/270	0.80	1.70	0.470	150	2500
MDx90	1900-3000	90	2.30	2.69	10	141	1.43/270	0.85	1.88	0.450	150	3600
MDx110	600-1800	110	2.60	3.44	8	173	1.45/330	0.80	1.74	0.350	150	2500
MDx110	1900-3000	110	2.60	3.44	12	173	1.55/330	0.85	1.88	0.330	150	3600
MDx135	600-1800	135	3.90	7.75	12	212	1.38/405	0.80	1.18	0.300	150	2500
MDx135	1900-3000	135	3.90	7.75	14	212	1.48/405	0.85	1.30	0.230	150	3600
MDx160	600-1800	160	6.00	18.4	12	251	1.56/480	0.80	1.35	0.230	150	2500
MDx160	1900-3000	160	6.00	18.4	14	251	1.66/480	0.85	1.45	0.220	150	3600
MDx182	600-1800	182	6.40	20.9	12	286	1.43/550	0.80	0.96	0.210	150	2500
MDx182	1900-3000	182	6.40	20.9	14	286	1.53/550	0.85	1.05	0.210	150	3600
MDx200	600-1800	200	8.00	32.6	12	314	1.38/600	0.75	0.88	0.210	150	2500
MDx200	1900-3000	200	8.00	32.6	16	314	1.48/600	0.80	096	0.220	150	3600
MDx250	600-1800	250	11.0	61.7	20	393	1.43/750	0.75	0.76	0.140	150	2500
MDx250	1900-3000	250	11.0	61.7	25	393	1.53/750	0.80	0.83	0.130	150	3600
MDx300	600-1800	300	12.5	79.7	20	471	1.35/900	0.75	0.55	0.130	150	2500
MDx300	1900-3000	300	12.5	79.9	25	471	1.45/900	0.80	0.50	0.120	150	3600
MDx350	600-1800	350	15.0	115	30	550	1.50/1050	0.75	0.61	0.091	150	2500
MDx350	1900-3000	350	15.0	115	35	550	1.60/1050	0.80	0.56	0.110	150	3600
MDx400	600-1800	400	17.0	147	30	628	1.48/1200	0.75	0.50	0.100	150	2500
MDx500	600-1800	500	21.0	225	40	785	1.35/1500	0.75	0.32	0.090	150	2500
MDx800	600-1800	800	18.0	165	45	1256	1.80/2400	0.75	0.33	0.080	150	2500
MDx1000	600-1800	1000	20.0	204	50	1570	1.82/3000	0.75	0.31	0.080	150	2500
MDx1200	600-1800	1800	20.0	204	50	1884	1.86/3000	0.75	0.26	0.080	150	2500

Type	VRRM	I F(AV)	I FSM	I 2t	I RRM	I F(RMS)	V FM/ IFM	VFO	r F	Rjc	Tjm	V iso	Outlines
	V	TC=60oC	KA	A2 sX104	mA	A	V/A	V	mΩ	oC /W	oC	V
	V	A	KA	A2 sX104	mA	A	V/A	V	mΩ	oC /W	oC	V
MDx400*	600-1800	400	10.0	510	30	628	1.65/1200	0.75	0.64	0.160	150	2500
MDx500*	600-1800	500	12.0	734	40	785	1.65/1500	0.75	0.51	0.130	150	2500
MDx600*	600-1800	600	15.0	1150	40	942	1.65/1800	0.75	0.42	0.110	150	2500
MDx800*	600-1800	800	18.0	1650	40	1256	1.72/2400	0.75	0.34	0.080	150	2500
MDx1000*	600-1800	1000	18.0	1650	40	1570	1.82/3000	0.75	0.31	0.080	150	2500
