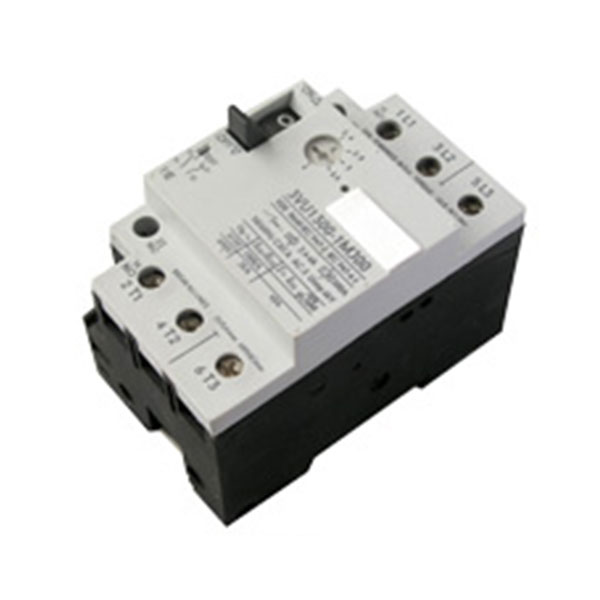

DZS7 Series Motor Protection Circuit Breaker

Category：- Motor Protection Circuit Breaker

Tel：+0086.577.61566899

Address：No#221,Wei 17 ROAD,Economic Develop Zone YueQing CITY ZHEJIANG PROVINCE ,CHINA

Intro: The model No. and meaningSpecificationModelRated current (A)Motor output (kW)Setting Range (A)Weight (kg)Thermal overload releasesInstantaneous overcurrent releasesDZS7-250.160.1-0.161.90.290.240.060.16-0.242.90.40.09/0.120.24-0.44.80.60.12/0.180.4-0.67.210.250.6-1121.60.37/0.551-1.6192.40.751.6-2.4 …

Detail

Messages

Product Detail:

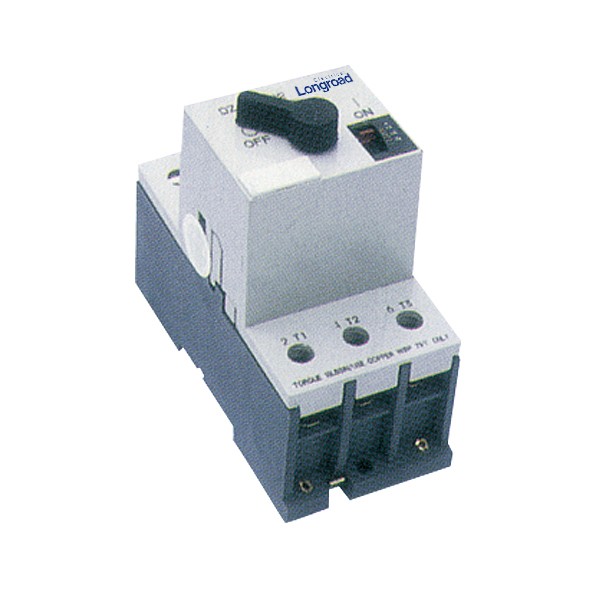

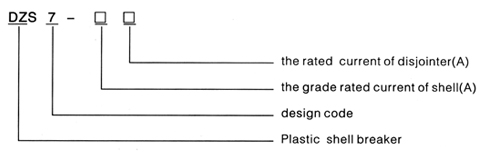

The model No. and meaning

Specification

Model	Rated current (A)	Motor output (kW)	Setting Range (A)		Weight (kg)
Model	Rated current (A)	Motor output (kW)	Thermal overload releases	Instantaneous overcurrent releases	Weight (kg)
DZS7-25	0.16		0.1-0.16	1.9	0.29
	0.24	0.06	0.16-0.24	2.9
	0.4	0.09/0.12	0.24-0.4	4.8
	0.6	0.12/0.18	0.4-0.6	7.2
	1	0.25	0.6-1	12
	1.6	0.37/0.55	1-1.6	19
	2.4	0.75	1.6-2.4	29
	3.2	1.1	2-3.2	38
	4	1.1/1.5	2.4-4	48
	5	1.5/2.2	3.2-5	60
	6	2.2	4-6	72
	8	3	5-8	96
	10		6-10	120
	13	4/5.5	8-13	156
	16	7.5	10-16	190
	20	7.5	14-20	240
	25	11	18-25	300

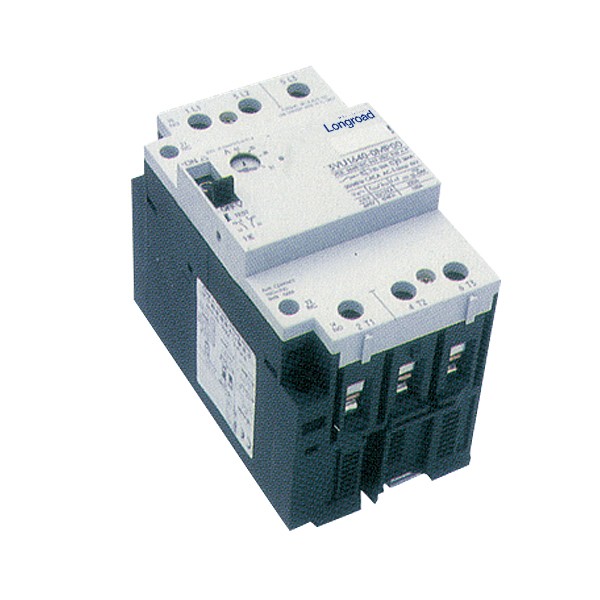

DZS7-63	1.6	0.37/0.55	1-1.6	19	0.76
	2.4	0.75	1.6-2.4	29
	4	1.1/1.5	2.4-4	48
	6	2.2	4-6	72
	10	3/4	6-10	120
	16	5.5/7.5	10-16	190
	25	11	16-25	300
	32	15	22-32	380
	40	18.5	28-40	480
	52	22	36-52	600
	63		45-63	600

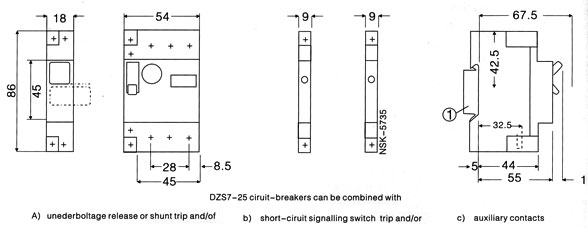

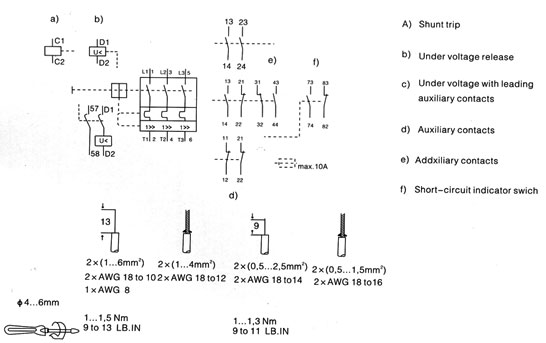

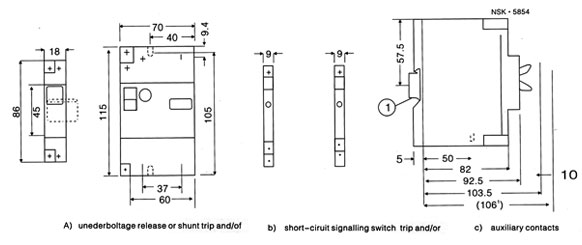

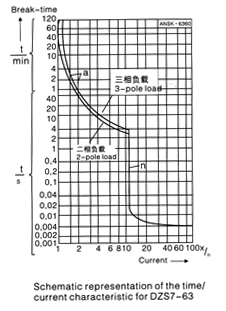

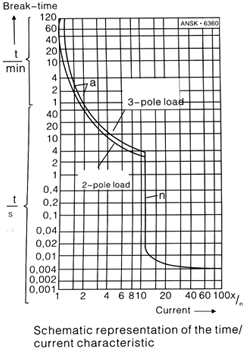

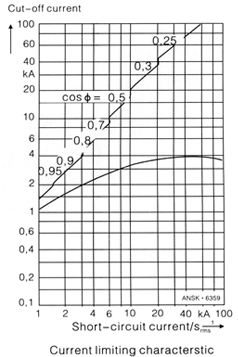

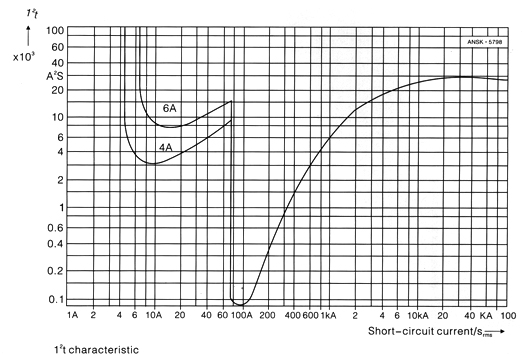

Characteristic curves DZS7-25The characteristic curves shown here apply for a DZS7-35-ockoo circuit-breaker with a rated current of 6A a current setting range of 4 to 6A and a tripping current for the instantaneous overcurrent release of 72A, at a rated voltage of AC 50Hz, 400V.

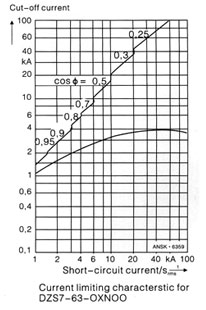

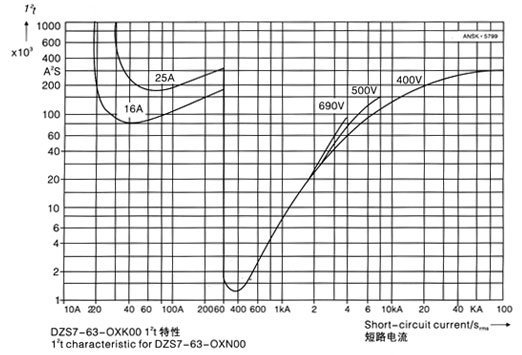

Characteristic curves DZS7-63The characteristic curves shown here apply for a DZS7-63-OXNOO circuit breaker with a rated current of 25A and a tripping current for the instantaneous overcurrent release of 300A. at a rated voltage of AC 50HJz,400V
