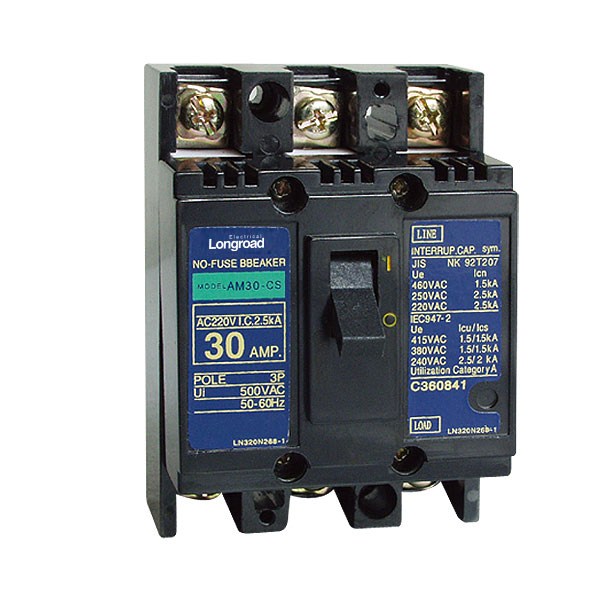

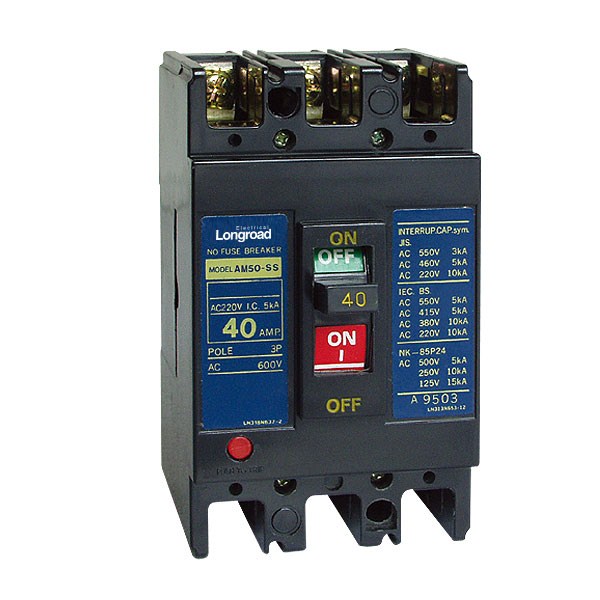

AM11 Series Moulded Case Circuit Breaker
Product Detail:
1.Application
AM11 series circuit breaker is features of reliable working out and steady performance, rea-sonable structure, beautiful appearance and small volume etc. It can be used in the circuit of 50Hz or 60Hz, rated voltage up to 600V. It is used to distribute electric energy in distribution network and be overload or short circuit protection power equipment, and also can be used in transformation of circuit unfrequency under the normal conditions.
2. Specification
Type | Poles number | Rated current(A) | Utilization category | Rated breaking capacity(KA) | |||||
240V | 380V | 415V | 500V | 600V | 600V | ||||
AM11-30CS | 2,3 | 3,5,10,15,20,30 | A | 5/2 | 5/2 | 2.5/1 | 2.5/1 | - | - |
AM11-50CS | 2,3 | 10,15,20,30,40,50 | A | 5/2 | 5/2 | 2.5/1 | 2.5/1 | - | - |
AM11-60CS | 3 | 60 | A | 5/2 | 5/2 | 2.5/1 | 2.5/1 | - | - |
AM11-100CS | 2,3 | 60,70,100 | A | 25/13 | 10/5 | 10/5 | 7/4 | - | - |
AM11-250CS | 3 | 125,150,175,200,225,250 | A | 30/15 | 18/9 | 15/8 | 10/5 | - | - |
AM11-400CS | 3 | 250,300,350,400 | A | 50/25 | 36/18 | 25/13 | 15/8 | - | - |
AM11-630CS | 3 | 500,600,630 | A | 50/35 | 36/18 | 25/13 | 15/8 | - | - |
AM11-30SS | 3 | 3,5,10,15,20,30 | A | 5/5 | 5/2.5 | 2.5/1.5 | 2.5/1.0 | - | - |
AM11-50SS | 3 | 10,15,20,30,40,50 | A | 5/10 | 10/7.5 | 7.5/5 | 7.5/5 | 2.5/1.5 | - |
AM11-60SS | 3 | 60 | A | 50/10 | 10/7.5 | 7.5/5 | 7.5/5 | 2.5/1.5 | - |
AM11-100SS | 3,4 | 60,70,100 | A | 50/42 | 30/20 | 7.5/5 | 15/10 | 10/5 | 5/2.5 |
AM11-250SS | 3,4 | 125,150,175,200,225,250 | A | 50/42 | 30/22 | 25/15 | 18/15 | 15/10 | 5/2.5 |
AM11-400SS | 3,4 | 250,300,350,400 | A | 85/60 | 50/35 | 25/20 | 35/25 | 25/18 | 15/10 |
AM11-630SS | 3,4 | 500,600,630 | A | 85/60 | 50/35 | 50/30 | 35/25 | 25/18 | 15/10 |
AM11-800SS | 3 | 600,700,800 | A | 85/60 | 50/35 | 50/30 | 35/25 | 25/18 | 15/10 |
AM11-50CP | 3 | 5,10,15,20,30,40,50 | A | 5/2 | 5/2 | 2.5/1 | 2.5/1 | - | - |
AM11-60CP | 3 | 60 | A | 5/2 | 5/2 | 2.5/1 | 2.5/1 | - | - |
AM11-100CP | 3 | 60,75,100 | A | 25/13 | 10/5 | 10/5 | 7/4 | - | - |
AM11-250CP | 3 | 125,150,175,200,225,250 | A | 30/15 | 18/9 | 15/8 | 10/5 | - | - |
AM11-400CP | 3 | 250,300,350,400 | A | 50/25 | 36/18 | 25/13 | 15/8 | - | - |
AM11-60CW | 3 | 10,20,30,40,50,60 | A | 5/5 | 5/2.5 | 2.5/1.5 | 2.5/1.0 | - | - |
AM11-125CW | 3 | 60,75,100,125 | A | 50/42 | 30/20 | 7.5/5 | 15/10 | 10/5 | 5/2.5 |
AM11-250CW | 3 | 125,150,175,200,225,250 | A | 50/42 | 30/22 | 25/15 | 18/15 | 15/1 | 5/2.5 |
Main technical specifications
Frame rated current Inm(A) | 30 | 50 | 125 | |
Model | AM11-30CW | AM11-63CW | AM11-125CW | |
Rated current(A) | 6, 10, 16, 20, 25, 32 | 6, 10, 16, 20, 25, 32, 40, 50, 63 | 60, 75, 100, 125 | |
Pole No. | 3 | 3 | 3 | |
Max. rated service voltage Ui(V) | AC | 690 | 690 | 690 |
DC | 250 | 250 | 250 | |
| a | 67.5mm | 75mm | 90mm |
b | 96mm | 130mm | 130mm | |
c | 49mm | 68mm | 61mm | |
ca | 67mm | 88mm | 88mm | |
bb | 84mm | 110mm | 110mm | |
aa | 23.5mm | 25mm | 30mm | |
IEC60/947-2 Icu AC | 500V | 0.5 | 2.5/1 | 10 |
440V | 0.75 | 2.5/1 | 10 | |
415V | 1 | 2.5/1 | 15 | |
380V | 1.5 | 5/2 | 25 | |
240V | 1.5 | 7.5/4 | 30 | |
DC | 250V | 0.5 | 7 | 7.5 |
125V | 1 | 5 | 10 | |
Connection way | Press terminal | |||
Automatic tripping device | Thermal-magnetic | |||
