Bridge Rectifier
Product Detail:
Comparison:
Current:5-300A
Voltage:100-1600V
All models feature the same compact dimensions to provide a uniform mounting pitch
Glass passivated diode chips
Excellent power/volume ratio
High thermal conductivity package, electrically inslated case
Typicla applications
Eliminator supply
Industrial automatic control
Numierial-controlled machinery, telecontrol system

|

|

|

|

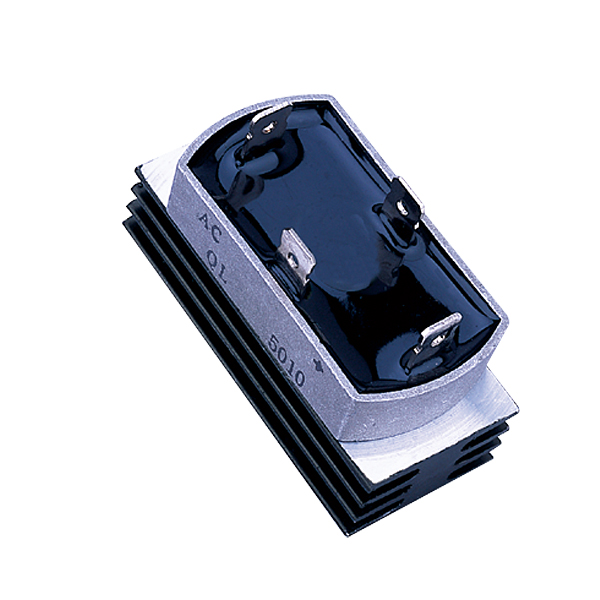

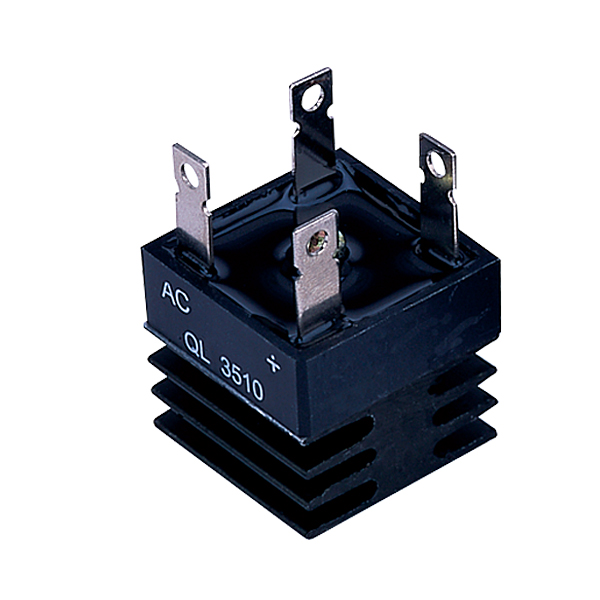

| QL115A-40A | QL225A-50A | sQL320A-100A | sQL480A-200A |

|

|

|

|

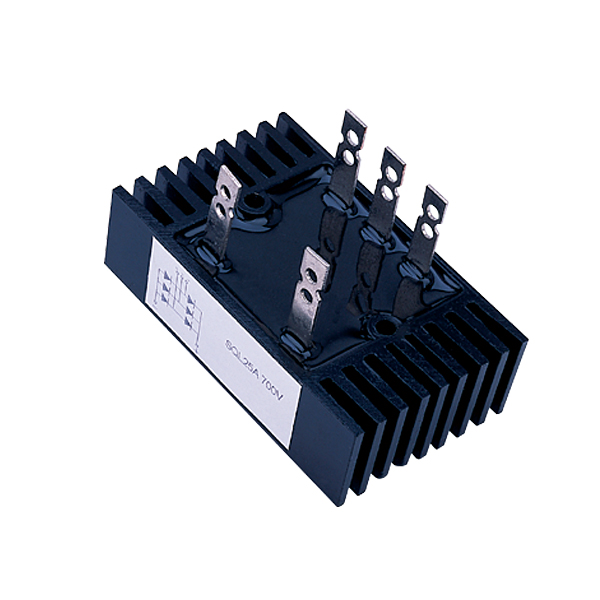

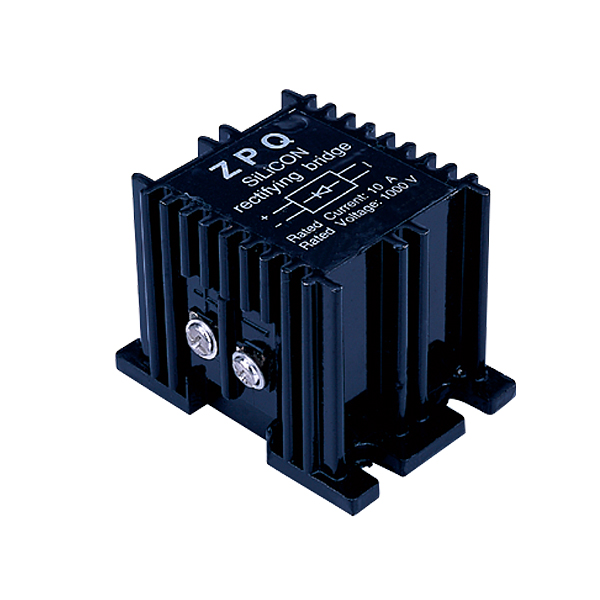

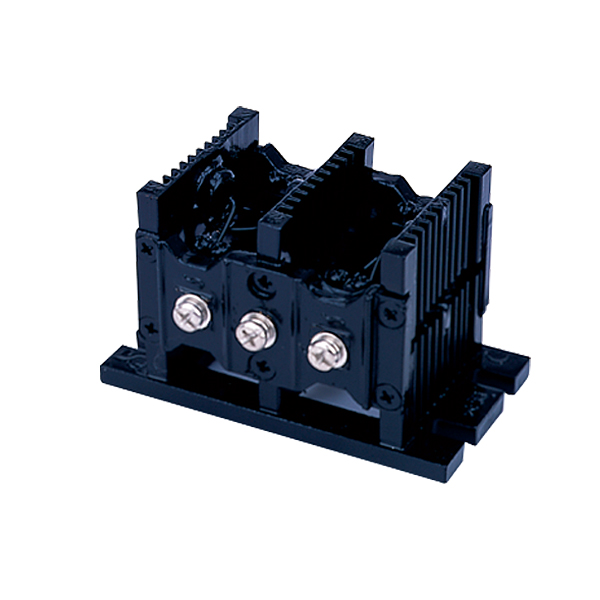

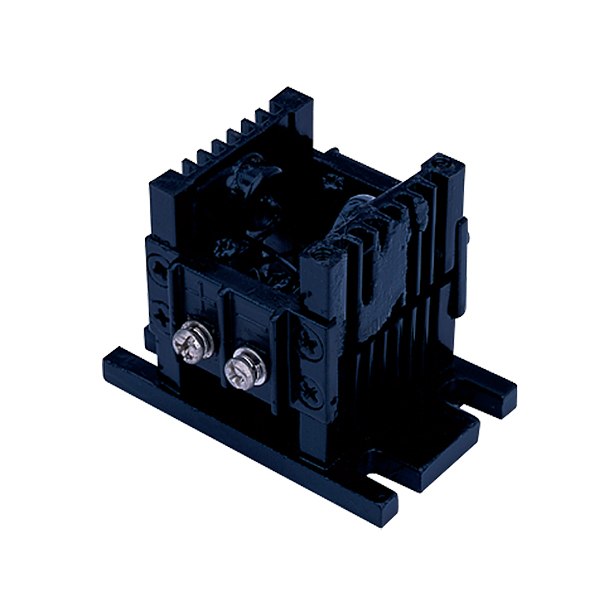

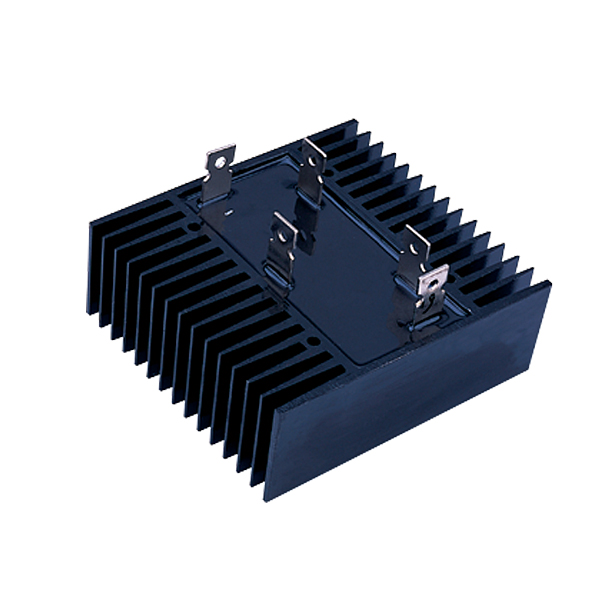

| SQL320A-100A | 4ZQ 10-40A | 6ZQ 10-40A | ZPQ10-40A |
Technical parameter:
| Model | VFM | VRRM | IRRM | Visol | TJ | Weight | Outline NO |
| V | V | mA | V | oC/w | G | ||

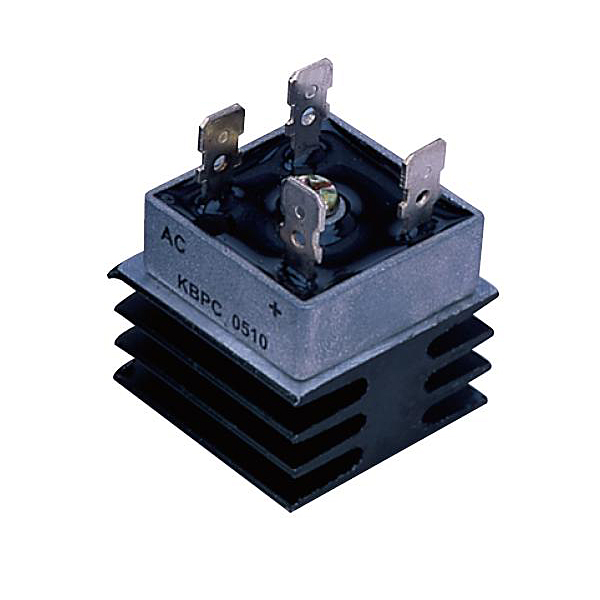

| KBPC5A-35A | ≤ 1.3 | 100-1600 | 5 | 2500 | -40oC ~+125oC | 29 | M |
| QL115A-40A | ≤ 1.3 | 100-1600 | 5 | 2500 | 35 | N | |
| QL225A-50A | ≤ 1.3 | 100-1600 | 5 | 2500 | 47 | O | |
| QL320A-100A | ≤ 1.4 | 100-1600 | 7 | 2500 | 315 | P | |
| QL480A-200A | ≤ 1.5 | 100-1600 | 10 | 2500 | 1200 | Q | |
| SQL320A-100A | ≤ 1.4 | 100-1600 | 7 | 2500 | 315 | P | |
| SQL480A-200A | ≤ 1.5 | 100-1600 | 10 | 2500 | 1200 | Q | |
| ZPQ5A-40A | ≤ 1.3 | 100-1600 | 5 | 2500 | 220 | S | |
| 4ZQ5A-40A | ≤ 1.3 | 100-1600 | 5 | 2500 | 150 | R | |
| 6ZQ5A-40A | ≤ 1.3 | 100-1600 | 5 | 2500 | 395 | T | |
| MDQ20A-100A | ≤1.30 | 100-1600 | 7 | 2500 | 200 | K | |
| MDQ100A-200A | ≤1.30 | 100-1600 | 7 | 2500 | 400 | L | |
| MDS20A-100A | ≤1.30 | 100-1600 | 7 | 2500 | 205 | K | |
| MDS100A-200A | ≤1.30 | 100-1600 | 7 | 2500 | 410 | L | |
