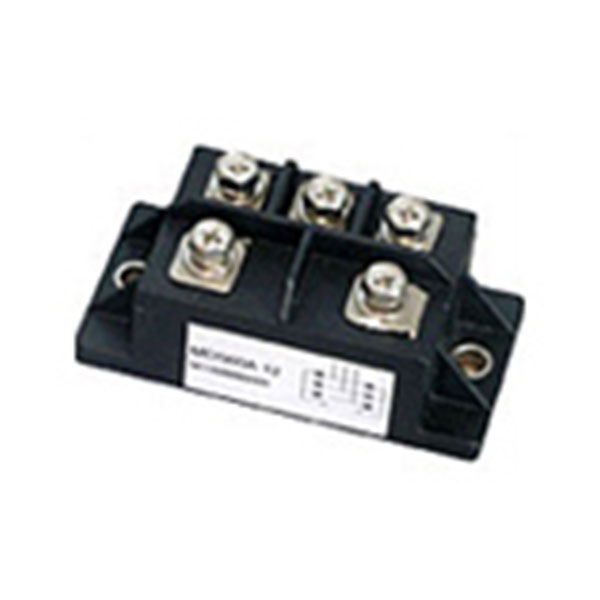

Three Phases Rectifying Bridges Modules

Tel：+0086.577.61566899

Address：No#221,Wei 17 ROAD,Economic Develop Zone YueQing CITY ZHEJIANG PROVINCE ,CHINA

Intro: LB-C14MDS30A 16MDS60A 12MDS100A 12MDE150-08X3MDS200A 12Technical parameter:TypeVRRMIoIFSMI2tIRRMVFM/IFMVFOrFRjcTjmVisoOutlinesVTC= 100oCKAA2sx104mAV /AVmΩoC/WoCVAMDS50600-1800500.750.2881.55/500.809.00.5501502500Fig22 Fig24 Fig26MDS75600-1800751.000.5181.47/750.807.00.3201502500MDS100600-18001001.50 …

Detail

Messages

Product Detail:


LB-C14	MDS30A 16	MDS60A 12

MDS100A 12	MDE150-08X3	MDS200A 12

Technical parameter:

Type	VRRM	I o	I FSM	I 2t	IRRM	VFM/IFM	VFO	rF	Rjc	Tjm	Viso	Outlines
	V	TC= 100oC	KA	A2 sx104	mA	V /A	V	mΩ	oC/W	oC	V
	V	A	KA	A2 sx104	mA	V /A	V	mΩ	oC/W	oC	V
MDS50	600-1800	50	0.75	0.28	8	1.55/50	0.80	9.0	0.550	150	2500	Fig22 Fig24 Fig26
MDS75	600-1800	75	1.00	0.51	8	1.47/75	0.80	7.0	0.320	150	2500
MDS100	600-1800	100	1.50	1.14	10	1.53/100	0.80	4.5	0.240	150	2500
MDS150	600-1800	150	2.50	3.18	10	1.50/150	0.80	3.8	0.150	150	2500	Fig28 Fig30
MDS175	600-1800	175	2.70	3.88	12	1.51/175	0.80	3.1	0.14	150	2500
MDS200	600-1800	200	3.00	4.59	12	1.54/200	0.80	2.8	0.12	150	2500
