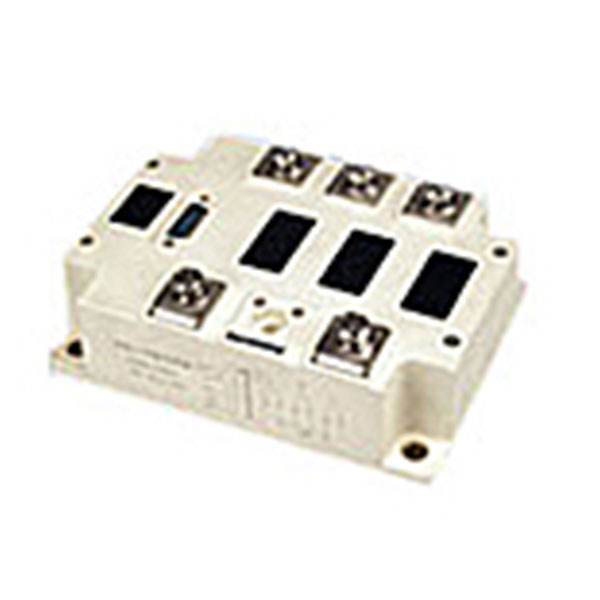

Product Detail:

Comparison:	Typicla applications
Current:20-500A Volage:<450V Using 0-10V DC signal can smoothly regulate the ouput voltage of main circuit. It can be regulated by hand or controlled by microcomputer. There are no phase series for the AC input of the 3-phase module main circuit. They are suitagle for resistance load and induction load.	Soft startup of AC motor Industrial automatic control Solid state relay Power supplies

Characteristics valve

Model		UOUT(AV)	IIN(RMS)	IOUT(AV)	IE	Tc
Model		V	A	A	V	A
Three phase	MSD-500	1.35VIN	410	500	400	≤80
	MSD-400		320	400	400	≤80
	MSD-300		260	300	400	≤80
	MSD-200		160	200	400	≤80
	MSD-150		120	150	400	≤80
	MSD-100		80	100	400	≤85
	MSD-50		45	50	400	≤88
	MSD-30		25	30	300	≤88
single phase	MQD-200	0.9VIN	222	200	300	≤80
	MQD-150		166	150	300	≤85
	MQD-100		111	100	300	≤85
	MQD-50		55	50	300	≤88
	MQD-30		33	30	300	≤88

Characteristics valve

Model		UOUT(AV)	IIN(RMS)	IOUT(AV)	IE	Tc
Model		V	A	A	V	A
Three phase	MSA-350	1.0VIN	350	350	400	≤80
	MSA-300		300	300	400	≤80
	MSA-260		260	260	400	≤80
	MSA-150		150	150	400	≤80
	MSA-100		100	100	400	≤80
	MSA-75		75	75	400	≤85
	MSA-40		40	40	400	≤88
single phase	MSA-20	1.0VIN	20	20	300	≤88
	MQA-300		300	300	300	≤80
	MQA-150		150	150	200	≤85
	MQA-100		100	100	200	≤85
	MQA-75		75	75	200	≤85
	MQA-40		40	40	200	≤88
	MQA-20		20	20	200	≤88

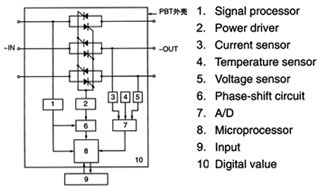

Forms of electrical connetion:


Intelligent 3 phase bridge rectifier modules	Intelligent 3 phase bridge rectifier modules

Intelligent single phase bridge rectifier modules	Intelligent single phase bridge rectifier modules


	Intelligent motor controlling modules	Motor of positive and negative revolve

Motor of positive and negative revolve characteristics valve (Input)　　　　　　(output)

NO.	Sembol	control voltage
1	Us(v)	DC4-30V
2	Is(mA)	8-18
3	Uon(V)	4-30V
4	Uoff(V)	3.5	5
5	ton(ms)	≤10

NO.	Sembol	AC220
1	Ue(v)	AC20-280V
2	Ie(mA)	10-50A
3	Ur(V)	≤1.8
4	Ido(Ma))	≤10	≤15
5	Up(A)	600
6	Ri(M\|)	≥100
7	V	2000
8	T	-20℃-+70℃

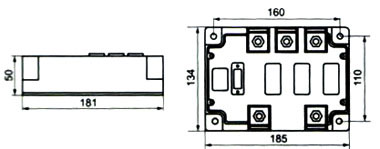

Outline Dimension:

Intelligent motor controlling modules :

Model	Dimension (mm)						weight
	L1	L2	b1	b2	h	4-￠	(kg)
MSA-DJ-1600	352	400	252	300	110	12	20
MSA-DJ-1200
MSA-DJ-800
MSA-DJ-400
MSA-DJ-800	254	300	184	230	110	10	10
MSA-DJ-350	160	185	110	135	67	8.5	2.65
MSA-DJ-300
MSA-DJ-260
MSA-DJ-150
MSA-DJ-100
MSA-DJ-75

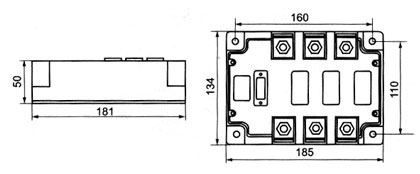

Outline Dimension:

Model	Specification	Power
	L1	(kg)
MSA-DJ-1600	1600A 450V/ 660V	240KW/280KW
MSA-DJ-1200	1200A 450V/ 660V	180KW/220KW
MSA-DJ-800	800A 450V/ 660V	120KW/180KW
MSA-DJ-400	800A 1140V	320KW
MSA-DJ-800	400A 1140A	160KW
MSA-DJ-350	350A 450V/ 660V	55KW/75KW
MSA-DJ-300	300A 450V/ 660V	48KW/70KW
MSA-DJ-260	260A 450V/ 660V	45KW/55KW
MSA-DJ-150	150A 450V/ 660V	22KW/30KW
MSA-DJ-100	100A 450V	15KW
MSA-DJ-75	75A 450V	11KW
