Cylindrical Fuse Holders

Tel：+0086.577.61566899

Address：No#221,Wei 17 ROAD,Economic Develop Zone YueQing CITY ZHEJIANG PROVINCE ,CHINA

Intro: TypesMatching with fuses sizeRated voltage(V)Rate current(A)Weight(g)Dimension(mm)A1A2BH1H2RT18-32(X)10*3850032597981186180RT18B-108.5*2350010598082186078RT18B-1610*25.850016598082186078RT18B-208.5*31.550020598082186078RT18B-2510*31.550025598082186078RT18B-3210*3850032598082186078RT18C-168.5*23500 …

Detail

Messages

Product Detail:

Types	Matching with fuse's size	Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)

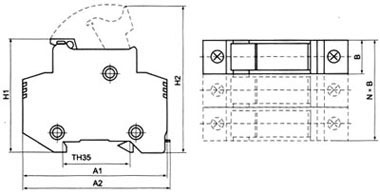

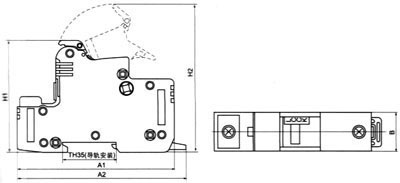

Types	Matching with fuse's size	Rated voltage(V)	Rate current(A)	Weight(g)	A1	A2	B	H1	H2
RT18-32(X)	10*38	500	32	59	79	81	18	61	80
RT18B-10	8.5*23	500	10	59	80	82	18	60	78
RT18B-16	10*25.8	500	16	59	80	82	18	60	78
RT18B-20	8.5*31.5	500	20	59	80	82	18	60	78
RT18B-25	10*31.5	500	25	59	80	82	18	60	78
RT18B-32	10*38	500	32	59	80	82	18	60	78
RT18C-16	8.5*23	500	10	56	77	78	18	62	81
RT18C-20	10*25.8	500	16	56	77	78	18	62	81
RT18C-25	8.5*31.5	500	20	56	77	78	18	62	81
RT18C-32	10*38	500	25	56	77	78	18	62	81
RT18M-32	10*38	500	32	56	78	78	18	60	80
HG30-32	10*38	500	32	57	78	80	18	73	88
RT18--63(X)	10*38	500	63	192	103	105	27	80	110

Types	Matching with fuse's size	Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)

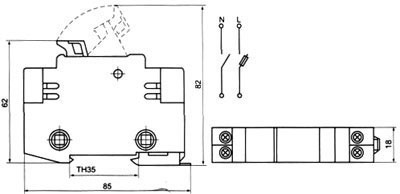

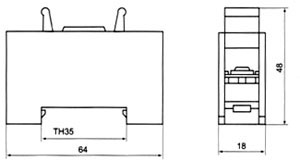

RT18N-10	8.5*23	500	10	70	See picture
RT18N-16	10*25.8	500	16	62
RT18N-20	8.5*31.5	500	20	63
RT18N-25	10*31.5	500	25	62
RT18N-32	10*38	500	32	62

Types	Matching with fuse's size	Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
Types	Matching with fuse's size	Rated voltage(V)	Rate current(A)	Weight(g)	A1	A2	B	H1	H2
RT18L-63	14*51	690	63	114	108	115	27	78	100
RT18L-125	22*58	690	125	182	126	134	36	78	104

Types	Matching with fuse's size	Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
Types	Matching with fuse's size	Rated voltage(V)	Rate current(A)	Weight(g)	A1	A2	B	H1	H2
HG30-63	14*51	500	63	167	107	80	27	80	102
HG30-125	22*58	500	125	185	140	110	36	90	109

Types	Matching with fuse's size	Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)

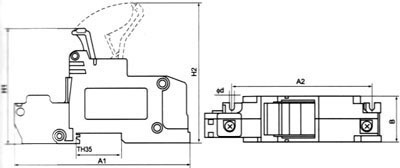

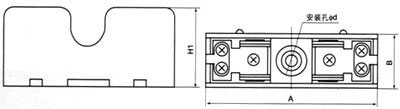

Types	Matching with fuse's size	Rated voltage(V)	Rate current(A)	Weight(g)	A1	A2	B	H1	Φd
RT19-6	8.5*31.5	500	16	34	69	18.5	28.5	41.5	5
RT19-25	10*38	500	25	57	80	23	35	53	6.5

Types	Matching with fuse's size	Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)

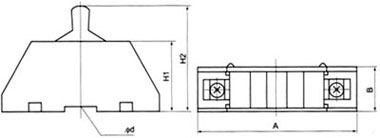

Types	Matching with fuse's size	Rated voltage(V)	Rate current(A)	Weight(g)	A1	A2	B	H1	Φd
RT19-40	14*51	500	40	78	91	28.5	40	40	5.5
RT19-100	22*58	500	100	157	108	36	50	50	6.5

Types	Matching with fuse's size	Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)

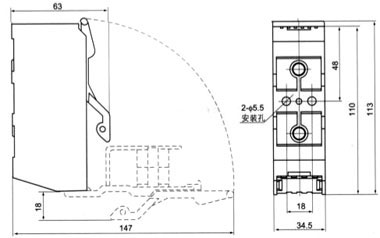

RT19-40J	14*51	500	50	140	See picture

Types	Matching with fuse's size	Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
RT14-20	10*38	380/500	20	38	See picture
RT18G-20	10*38	500	20	44	See picture

Types	Matching with fuse's size	Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
Types	Matching with fuse's size	Rated voltage(V)	Rate current(A)	Weight(g)	A1	A2	B	H1	H2
RT14-32	14*51	380/500	32	148	105	26.5	57	135	5.5
RT14-63	22*58	500	63	241	125	35	66	158	5.5

Types	Matching with fuse's size	Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)
RT19-16X	85*31.5	500	16	38	See picture

Types	Matching with fuse's size	Rated voltage(V)	Rate current(A)	Weight(g)	Dimension(mm)

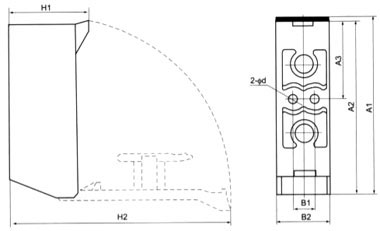

Types	Matching with fuse's size	Rated voltage(V)	Rate current(A)	Weight(g)	A1	A2	A3	B1	B2	H1	H2	Φd
RT14-32B	14*51	500	50	104	98	95.5	42.5	12	30	45	123	5
RT14-63B	22*58	500	100	150	107.5	103.5	48.5	18	35	59	142	6
